SR05智能戒指核心功能：
CPU：德国 Dialog DA14531
尺寸：#7；#8；#9；#10；#11； #12
APP：Jring
心率：天翼3602
加速度计：SC7A20
电池容量：16mAh
内存（ROM+RAM）：128kb ROM + 96 Kb RAM
防水等级：IP68
工作时间：戒指7-9天，带充电仓90-100天
待机时间：10-15天
系统：Android 5.0+ / IOS10.0+
材质：树脂+不锈钢
颜色：金色、哑光黑色、哑光银色、亮银色、锡色
配件：充电线（可直接给戒指充电）、说明书、包装
主要功能：
监测心率、睡眠、血氧、血压、卡路里、步数、里程、智能拍照、使用手势浏览抖音
运动数据：跑步、骑行、跳绳、瑜伽、登山、健走、高尔夫、跳舞
语言：多种语言

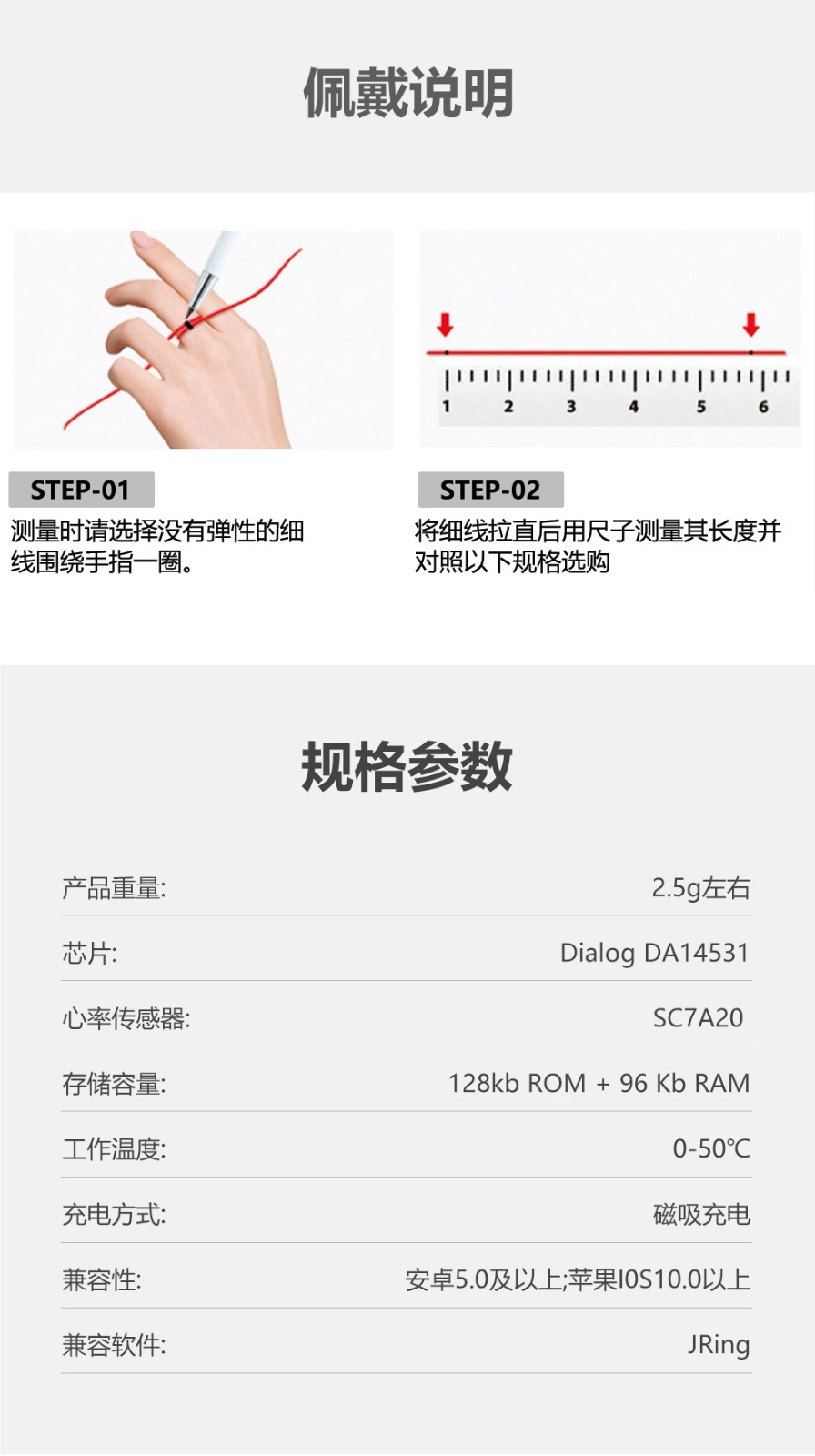

SR05智能环蓝牙心率血氧健康监测规格参数详情
| 中文规格参数 | Chinese specification parameters | ||

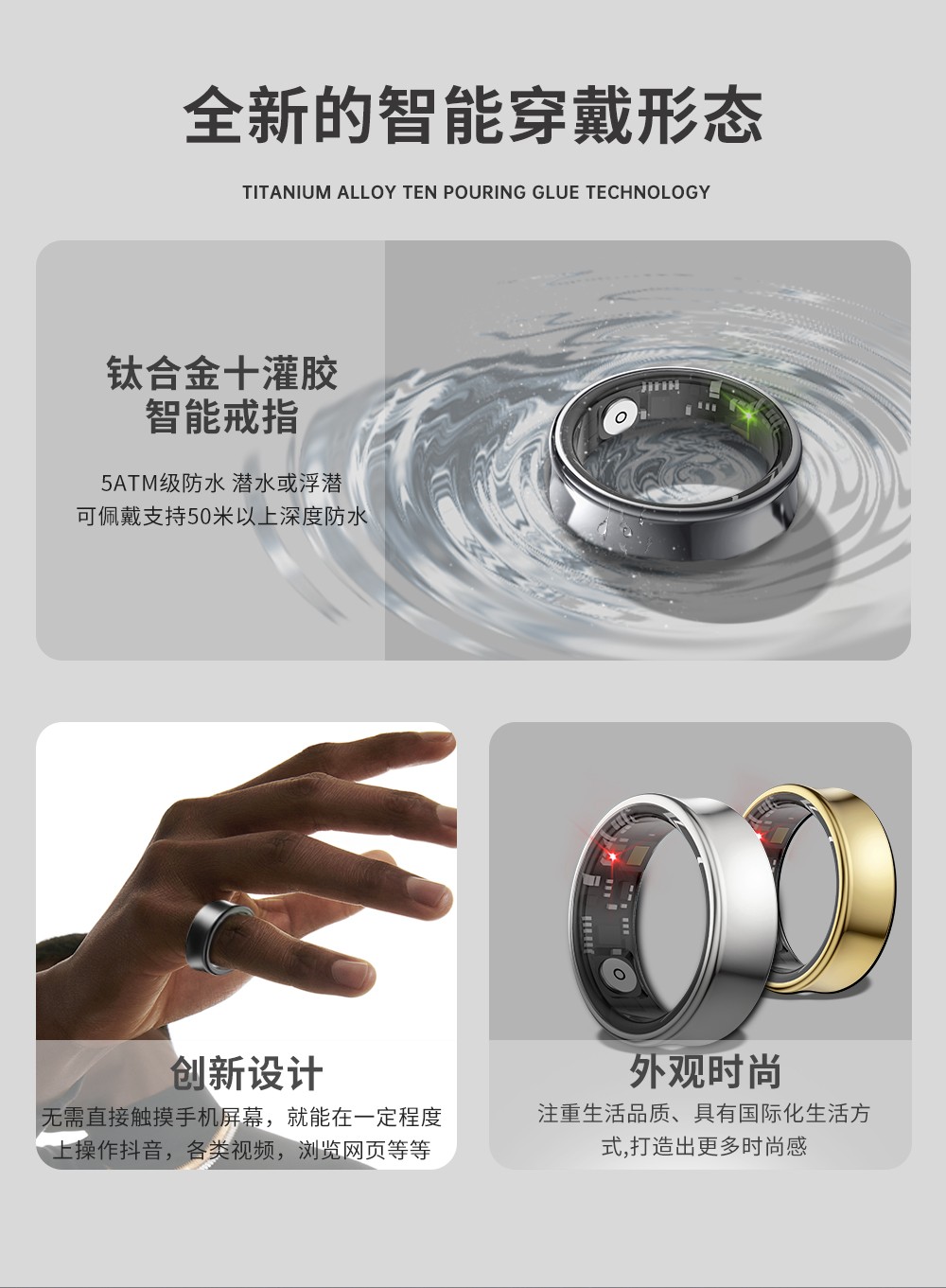

| Water proof(防水) | 5ATM级防水 潜水或浮潜可佩戴支持50米以上深度防水 | Water Proof | 5ATM class waterproof, diving or snorkeling can be worn to support more than 50 meters depth waterproof |
| Material(材质)工艺 | 钛合金十灌胶工艺 | Material process | Titanium alloy ten pouring glue technology |

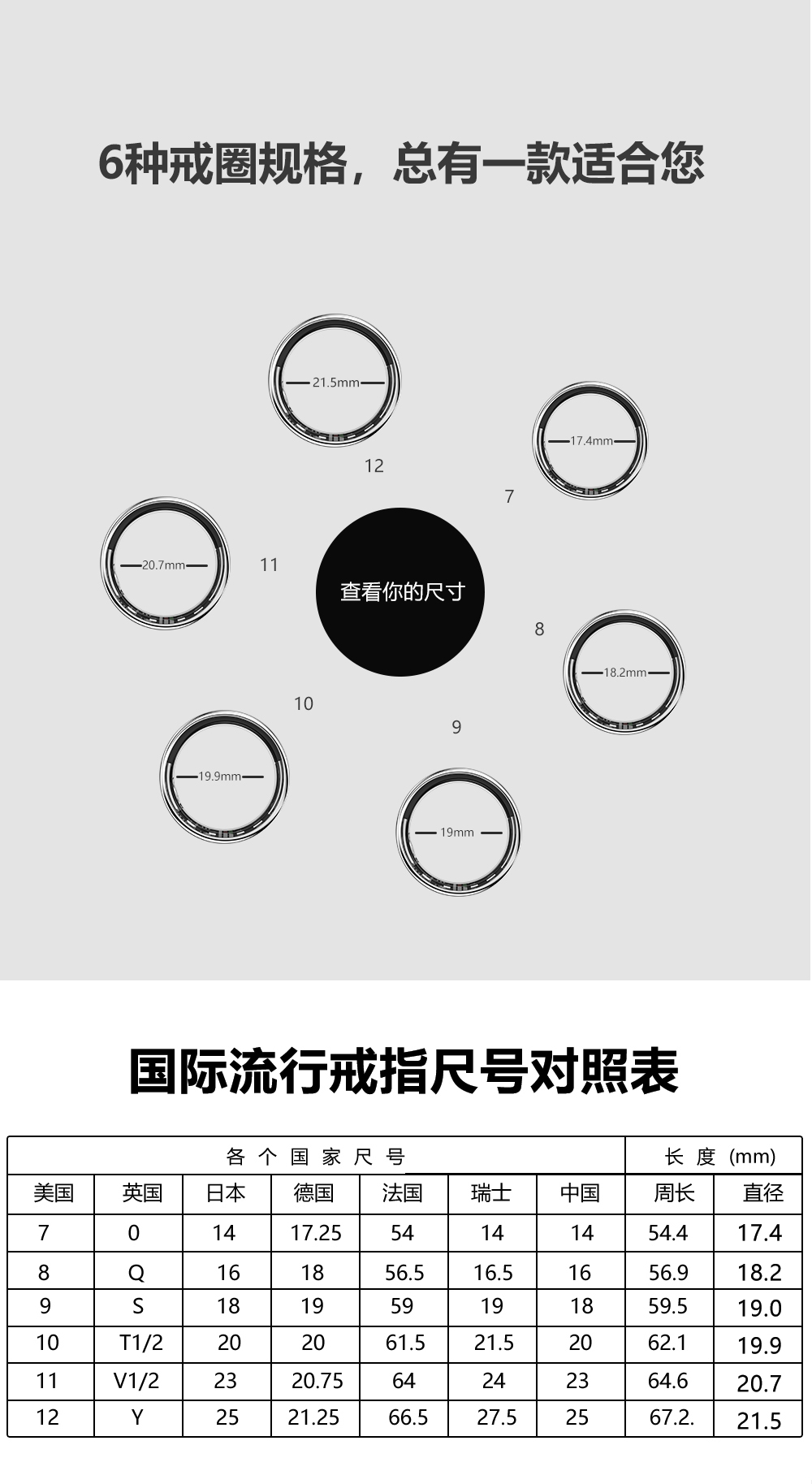

| Size(尺寸) | #7(内径17.4mm) #8(内径18.2mm) #9(内径19.0mm) #10(内径19.9mm) #11(内径20.7mm) #12(内径21.5mm) 厚度2.5mm | Size | ”# 6(16.5 mm) # 7(17.4 mm) # 8(18.2 mm) # 9(19.0 mm) # 10(19.9 mm) # 11(20.7 mm) # 12(21.5 mm) # 13(22.3 mm) thickness 2.5mm |
| Weight（重量） | 2.5g左右 | Weight | 2.5g or so |

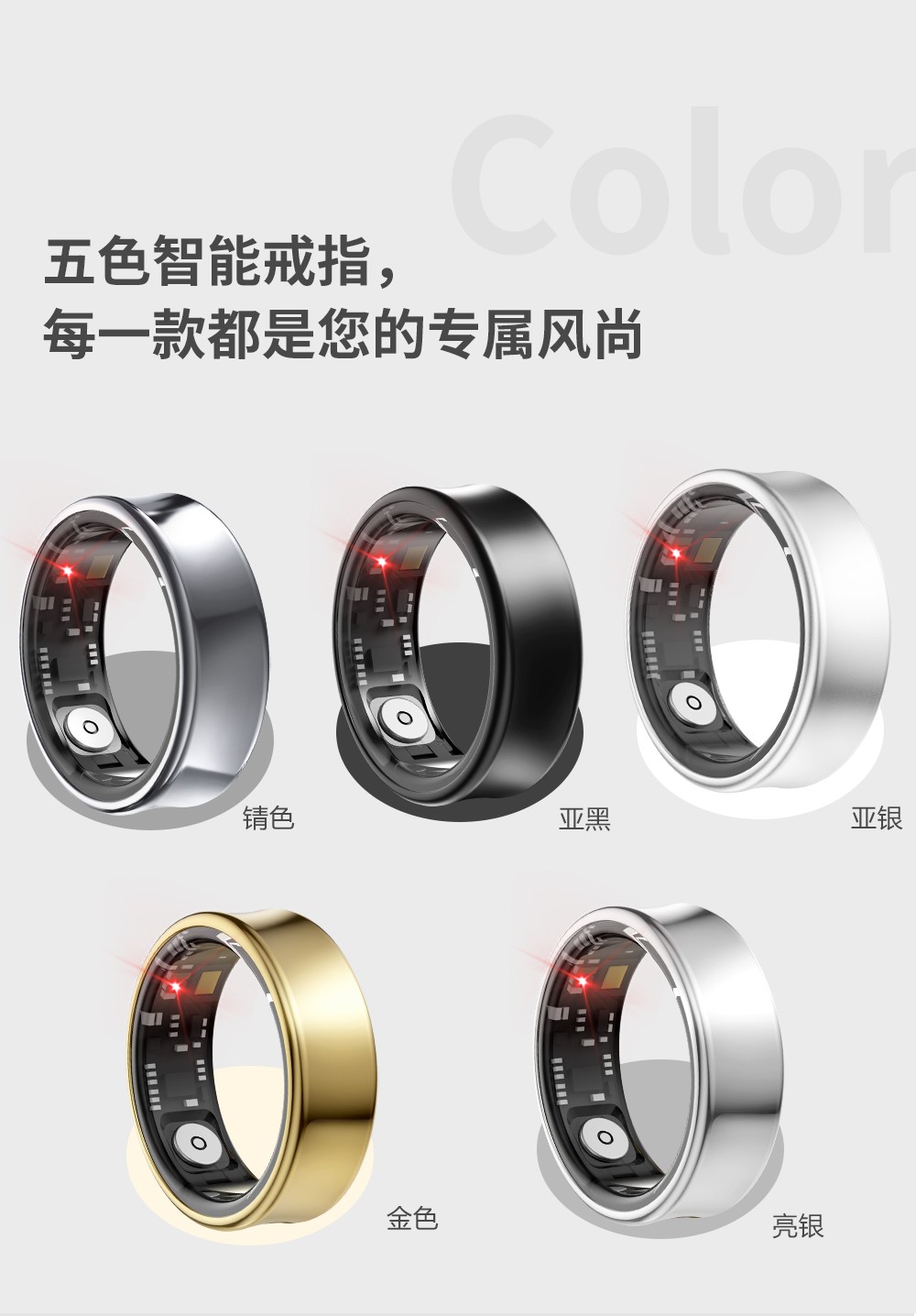

| Color（产品颜色） | 金色，亚黑，亚银，亮银，锖色 | Color | Gold, sub-black, sub-silver, bright silver, color |
| Chipset (主芯片型号) | 德国Dialog DA14531) -超低功耗，更持久 | Chipset (main chip model) | German Dialog DA14531)-ultra-low power, more durable |
| Memory 机身存储容量(ROM+RAM) | 128kb ROM + 96 Kb RAM | Memory (ROM+RAM) | 128kb ROM + 96 Kb RAM |
| G-Sensor(传感器) | SC7A20 | G-Sensor | SC7A20 |
| Bluetooth Version(蓝牙版本) | 5.1 | Bluetooth Version | 5.1 |
| MobileAPP-GPS(支持APP端GPS数据) | 是 | MobileAPP-GPS | Yes |
| Heart rate sensor(心率传感器型号) | 天易3602 | Heart rate sensor | Tianyi 3602 |
| Battery Type(电池类型) | 聚合物纯钴电池 | Battery Type | Polymer Pure Cobalt Battery |
| Operating temperature range (工作温度) | 0-50℃ | Operating temperature range | 0-50℃ |
| Battery Capacity(电池容量) | 16mah | Battery Capacity | 16mah |
| Charging time(充电时长) | 2小时 | Charging time | Two hours |
| Theory Standby time (理论待机时间) | 10天-15天 | Theory Standby time | 10-15 days |
| Normal using time(使用时间) | 7天-9天 | Normal using time | 7-9 days |
| Charging(充电) | 磁吸充电+充电盒 | Charging | Magnetic charging box |
| Software Function&App（软件功能及应用） | |||
| Compability(兼容性) | 支持安卓5.0及以上版本；苹果IOS 10.0以上版本 | Compability | Android 5.0 and above; Apple IOS 10.0 and above |
| Compability Software(兼容软件) | Jring | Compability Software | Jring |
| 设备端软件功能 | |||
| 操作定义（Operation） | 戒指无触摸、无按键；App发起运动及功能测试 | Operation | The ring has no touch and no buttons; App initiates movement and function tests |
| APP端软件功能 | |||
| 模块 | 备注 | Module | Notes |
| 多运动模式（Multisports） | 多种运动模式 | Multisports | Multiple movement modes |
| 心率(Heart rate) | APP发起心率测试/全天动态⼼率趋势及数据分析/心率数据分析/近7次心率测量趋势/心率历史数据 | Heart rate | App initiates heart rate test/whole day dynamic heart rate trend and data analysis/heart rate data analysis/recent 7 heart rate measurement trend/heart rate history data |
| 睡眠(Sleep) | 睡眠数据统计、睡眠比例、睡眠评分、睡眠分析、平均睡眠心率等 | Sleep | Sleep statistics, sleep proportion, sleep score, sleep analysis, average sleep heart rate and so on |
| 血氧(Blood oxygen) | APP发起血氧测试/近7次血氧数据/近7次血氧饱和度测量趋势/血氧历史数据 | Blood oxygen | App initiates oximetry test 7 times oximetry data 7 times Oxygenation trend oximetry historical data |
| 手势刷抖音 | 智能戒指刷抖音是一种新兴的交互方式。通过与手机或其他设备的连接和特定的技术支持，智能戒指可以实现对抖音应用的一些操作控制、翻页这种方式为用户提供了更加便捷和创新的体验，无需直接触摸手机屏幕，就能在一定程度上操作抖音，各类视频，浏览网页，购物等等 | Hand gestures brush tiktok | Smart ring brush Tiktok is a new interactive way. Through the connection with the mobile phone or other devices and specific technical support, the smart ring can realize some operation control and page turning of the Tiktok application, which provides users with a more convenient and innovative experience. Without directly touching the mobile phone screen, it can operate Tiktok, various videos, browse the web, shop, etc. to a certain extent |
| 手势摆动拍照即刻 | 创新设计，让您随时随地轻松捕捉美好瞬间。自拍新高度，一指触发美丽智能戒指，远程遥控拍照，让您轻松成为自己的专业摄影师 | Wave your hand to take a picture immediately | Innovative design, so that you can easily capture the beautiful moment anytime and anywhere. Selfie new height, one finger trigger beautiful smart ring, remote control photography, so that you can easily become their own professional photographer |
| 微信运动/苹果健康(Wechat&Apple) | 接入微信运动及苹果健康 | Wechat&Apple | Access wechat Sports and Apple Health |
| APP 端支持语言(APP multi-Language support) | 国语言：多国语言 | APP multi-Language support | National language: multilingual |
| Short Screen for our APP： | |||
| Support OTA (OTA升级): | 支持Fota升级 | Support OTA | Support for FOTA upgrades |
| APP | Jring | APP | Jring |
